Physical Specifications
- Built dimensions: 53 x 65 x 97 in/135 x 165 x 246 cm
- Frame: 3"x 3" 7-guage (3/16" and 1/8" wall thickness) tubular steel construction.
- Shipping Weight: 500 lb/226 kg
- Finish: Proprietary 8-step electrostatically applied powder coat finish, oven baked to insure durability.
Technical Specifications
- J-hook: Non-pinch, J-hook design, 1” solid steel bar catches for strength and safety.
- Frames: Deep penetrating electrically welded high strength frames. All frames designed to anchor to floor.
- Durability: 3/8” and 1/2” grade 5 & 8 frame bolts used for optimum strength and durability.

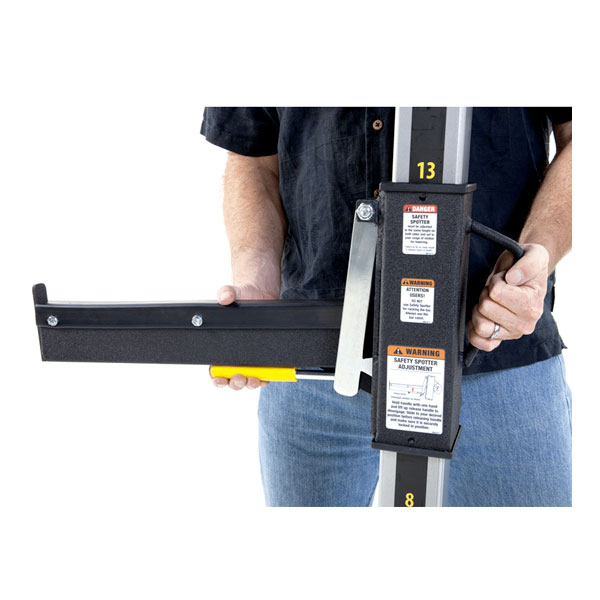

- Safety Rails: Non-removable integrated J-hook bar catches and safety rails limit liability and loss.
- Lever lock™: 3/4” spring loaded Lever lock™ pull pins on safety rails load rated at over 15,000 lbs.
- Modular Design: Unique modular design allows interchangeability of components.
- Swing Lock™ and Lever Lock™Lever: Swing Lock™ Bar Catches and Lever Lock™ Safety Rails adjust in 3” increments to accommodate users of all size.
- Swing Lock™ pull pins: 3/4” solid steel Swing Lock™ pull pins on Bar Catches rated at 56,000 PSI shear load.
- Weight Horns: Integrated weight horns provide ample room to store weight plates of all sizes.
- Standard Features: Storage hooks, suspension loops and Power Band Pegs offered as standard features.

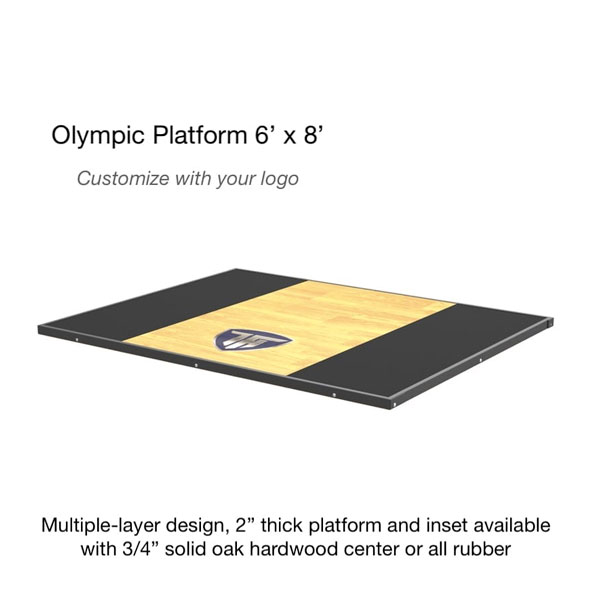

- Platforms & Insets: Platforms & Insets available for all models. 2” thick platforms comprised of three layer design for maximum strength and available with 3/4” solid oak hardwood or rubber centers.
