Physical Specifications
- Length: 80 inches / 203 cm
- Width: 32 inches / 81 cm
- Height: 68 inches / 173 cm
- Equipment Weight: 338 lbs / 153 kg
Shipping Dimensions/Weight
- Length: 85 inches / 216 cm
- Width: 32 inches / 81 cm
- Height: 44 inches / 112 cm
- Shipping Weight: 418 lbs / 190 kg
- Shipping Configuration (for non-installed purchases): Ships in two boxes. The base ships on a wooden pallet, within a protective box. Arrives partially assembled. The console ships in a separate box
Technical Specifications
-

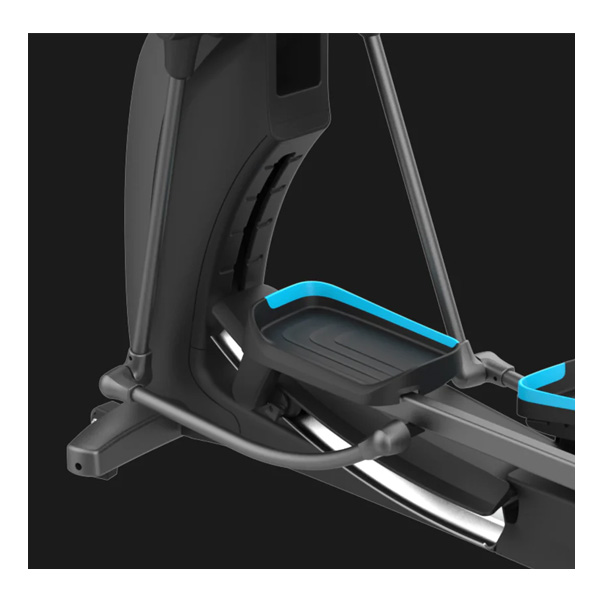

Step-up Height (footplate at lowest position) (inches / cm): 8 inches / 20 cm
-
Step-up Height (footplate at highest position) (inches / cm): 21.5 inches / 55 cm
- Foot Pedal Dimensions (inches / cm): 14 X 6.5 inches / 37 X 17 cm
- Color: Pacific Blue and Dove Gray
Power Requirements
- Equipment: Self-Powered
- Optional Power Supply: An optional electrical power supply is available if your EFX® use will be light. The internal generator must be used enough to keep the console battery powered. To find out more about the optional power source, contact Precor Customer Service. Installation of the optional power supply will require a Precor authorized service technician.
- 120 VAC: 120V/15A circuit with 5-15R NEMA receptacle
- 240 VAC: 240V/15A circuit with 6-15R NEMA receptacle
Resistance Systems
- Resistance Levels: 20
Console and Programs

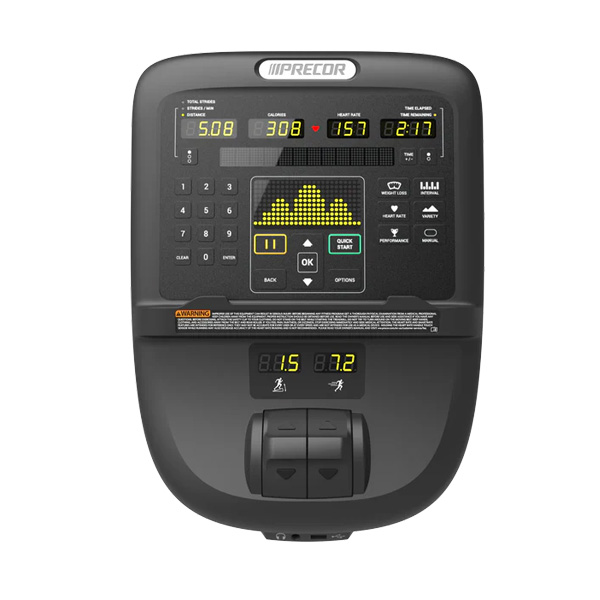

Console
- Console Type: Streamlined / Advanced LED Display
- Tap Control: No
- QuickStart™: Yes
- Numeric Keypad: Yes
- Console Language(s): Dutch, English, French, German, Italian, Russian, Spanish
- Units Selection: Metric or U.S. Standard
- Preset Programs: Manual Interval Weight Loss Variety 1 Gluteal 2 Gluteal Heart Rate Basic HRC Performance Fitness Test 1 Cross Training 2 Cross Training 3 Cross Training
- Electronic Readouts: Resistance level, CrossRamp angle, Distance, Strides/min, Total strides, Calories, Heart rate, Time remaining, Time elapsed, Time in zone, Segment time, Remaining, Average speed, Calories/min, Calories/hour, Watts, METS, Target HR, Average HR, % Complete, Workout profile, Workout summary
Heart Rate Monitoring
- Touch: Yes
- Telemetry: Yes
- Chest Strap Transmitter: Works with any Polar® compatible 5 KHz chest strap transmitter
- Chest Strap Transmitter included: No
