Product Specifications
Physical Specifications
- Maximum User Weight: 350 lb / 159 kg
- User Height Range: 58 to 78 inches / 147 to 198 cm
- Height with PVS: 70 inches / 178 cm
- Length: 43 in / 109 cm
- Width: 21 in / 53 cm
- Equipment Weight: 144 lb / 65 kg
- Height: 57 in / 145 cm
Technical Specifications
- Standard Shroud Colors: Gloss Metallic Silver, Black Pearl
- Power: No voltage ratings. Self-Powered
- Covers: Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
- Cable Management: Optional
- Universal Seat Mount: No
- Accessories Holder(s): Yes
- Transport Wheels: Integrated
- Biomechanics: To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
- Frame: Two-step powder-coating process on steel frame.
- Seat: Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort.
- Bearings: Pedal axles and bearings are designed for smooth operation and exceptional service life.
- Seat Adjustment: Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height.
- Handlebars: Over-molded handlebar design offers the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser's hands. Touch heart rate is integrated in the upright position.
- Pedals: Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.
- Resistance System Minimum Watts: 22 (level 1 at 20 RPM)
- Resistance System Maximum Watts: 500 (level 25 at 150 RPM)
- Resistance Levels: 25
- Single Stage Drive System: The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.
- 3-Piece Crank: 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
- Drive System: The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.
- 3-Phase Generator: 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
- Belt Drive: Belt drive for smoother, quieter operation and reduced maintenance.
Console and Programs

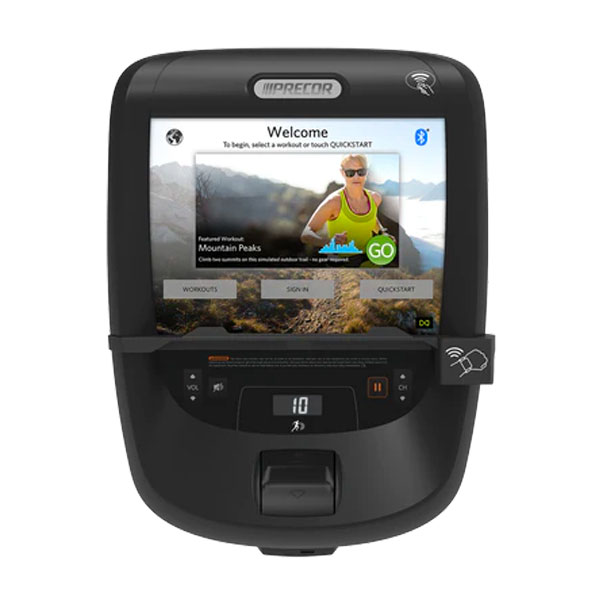

- Display Type: 15 in / 38.1 cm LCD Capacitive Touch Screen
- Numeric Keypad: Yes
- Motion Controls: Yes
- QuickStart™: Yes
- Tactile Dome Keys: Yes
- Console Language(s): English, Chinese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
- Units Selection: Metric and U.S. Standard
- Maximum Pause Time: 300 seconds (adjustable)
- Maximum Workout Time: 120 minutes (adjustable)
- Electronic Readouts: Resistance Level, Total Distance, Distance Remaining, Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts, Time Elapsed, Time Remaining, Time in Zone, Segment Time, RPM, Speed, Average Speed, Heart Rate, Average Heart Rate, Max Heart Rate
- Preset Programs: Lose Weight (4-3 Interval, Aerobic, Fat Burner, Heart Rate Zone), Be Fit (Manual, 1-1 Interval, 2-1 Interval, 4-1 Interval , Rolling Hills, Mountain Peaks, Hill Climb, Heart Rate Zone), Push Performance (1-4 Interval, 1-2 Interval, 5 K, Heart Rate Zone, Watts Target)
- Heart Rate Monitoring: Touch heart rate sensors located conveniently on handlebars next to seat.
- Telemetry: Integrated telemetry heart rate reads heart rate from a user's 5 KHz HR chest strap.
- Closed Captioning: Yes, CC1-4, Text 1-4 (North America only)
- Video decoding: PEG-2, MPEG-4, H.264
- Global TV Support: NTSC, ATSC, PAL, SECAM, DVB-T/T2/C, ISDB
- Mobile Device Charger: Yes
- Reading Rack: Integrated
- Personal Viewing System (PVS): Optional 15.6 in / 39.6 cm screen
- Video inputs: RF
- Entertainment Cap / Wireless Receiver: N/A
- RFID / NFC: ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future)
- Ethernet: 10/100/1000 Base-T
- Diagnostics: Ability to set club parameters, e.g. to limit exercise time and pause time.
- CSAFE Enabled: N/A
- Wifi: 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation
- Bluetooth: Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)
