TuffStuff CT-8230 Battle Rope Training Module – Commercial CT Series

Request a Quote

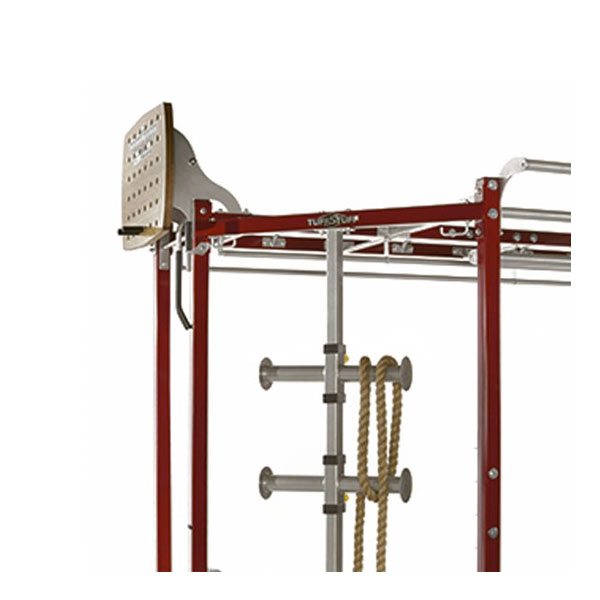

The CT-8230 Battle Rope Training Module utilizes 2 adjustable height rope barrels, not only to set the height of the start or finish position, but to also increase the resistance above the actual weight of the training ropes by simply wrapping over 1 or both of the barrels.

Product Highlights

The CT-8230 Battle Rope Training Module utilizes 2 adjustable height rope barrels, not only to set the height of the start or finish position, but to also increase the resistance above the actual weight of the training ropes by simply wrapping over 1 or both of the barrels.

Product Details for the TuffStuff CT-8230 Battle Rope Training Module – Commercial CT Series



TuffStuff CT-8230 Battle Rope Training Module at Commercial Fitness Superstore of Arizona.

TuffStuff CT-8230 Battle Rope Training Module – CT Series

The CT-8230 Battle Rope Training Module utilizes 2 adjustable height rope barrels, not only to set the height of the start or finish position, but to also increase the resistance above the actual weight of the training ropes by simply wrapping over 1 or both of the barrels.

The battle rope station is unique to the CT series. Shoulders and arms burn through a favorite of functional training fanatics.

The CT-8230 Battle Rope Training Module is one component of the CT Training System. The TuffStuff CT Fitness Training System ignites a revolution in functional training! Made in the USA from materials only. The CT-8210 Medicine Ball Rebounder Training Module works with the CT-4000, CT-6000, CT-8000B, and the CT-8100E frame systems – combine other modules with these frames to create a custom training system!

Product Highlights

  • Battle rope exercises develop real world strength from the hands through the upper body, core, legs and back.
  • The fat pin positions on the CT are fully adjustable for different start positions and different resistance points.
  • Every module comes standard with double welded lower loops for even more training options. Attaching stretch cords and Stroops allows your clients to work speed, agility and lateral movement with ease.
Physical Specifications
  • Maximum Weight Capacity: 300 lbs / per Side
Technical Specifications
  • 3”x 3” and 2”x3” x .120 (11-gauge) tubular steel upright posts and top/bottom/cross supports utilized for all structural frame assembly to offer and maintain maximum structural integrity.
  • 1”, 1-1/4” and 2” .120 (11-gauge) HG round tubing for added structural support and various grip thickness.
  • All mounting plate connectors are 3/8” (.360) thick 1018 cold rolled steel.
  • Floor mount anchor plates made of 1/4” (.240) HRPO 1018 grade steel.
  • TuffStuff’s proprietary electrostatically applied powder coat finish and oven baked to insure durability.
  • Grade 5 blue zinc frame bolts used for optimal strength and durability.
  • 1/4” 3003 aluminum tread bright step platform for maximum strength and no-slip training.
  • CT Fitness Training System must be bolted securely to a solid and level surface by a licensed contractor.

Commercial Warranty*

  • 10 YEARS: Structural frame (coating excluded) and welds.
  • 1 YEAR: Peg Board (excluding finish & logo) and pulleys.
  • 6 MONTHS: Coating, plastic glides, nylon rings & straps and hardware.
  • Accessories not included or covered under warranty.
